GUI Designer

The GUI Designer allows to arrange the graphical user interfaces (GUI) of those components that have one. These GUI Elements will then be shown on the ARE GUI. GUI elements are drawn and deleted automatically when a component with a GUI is added to or deleted from the model. Within the GUI Designer the size and the position of the GUI Elements can be changed by drag and drop.

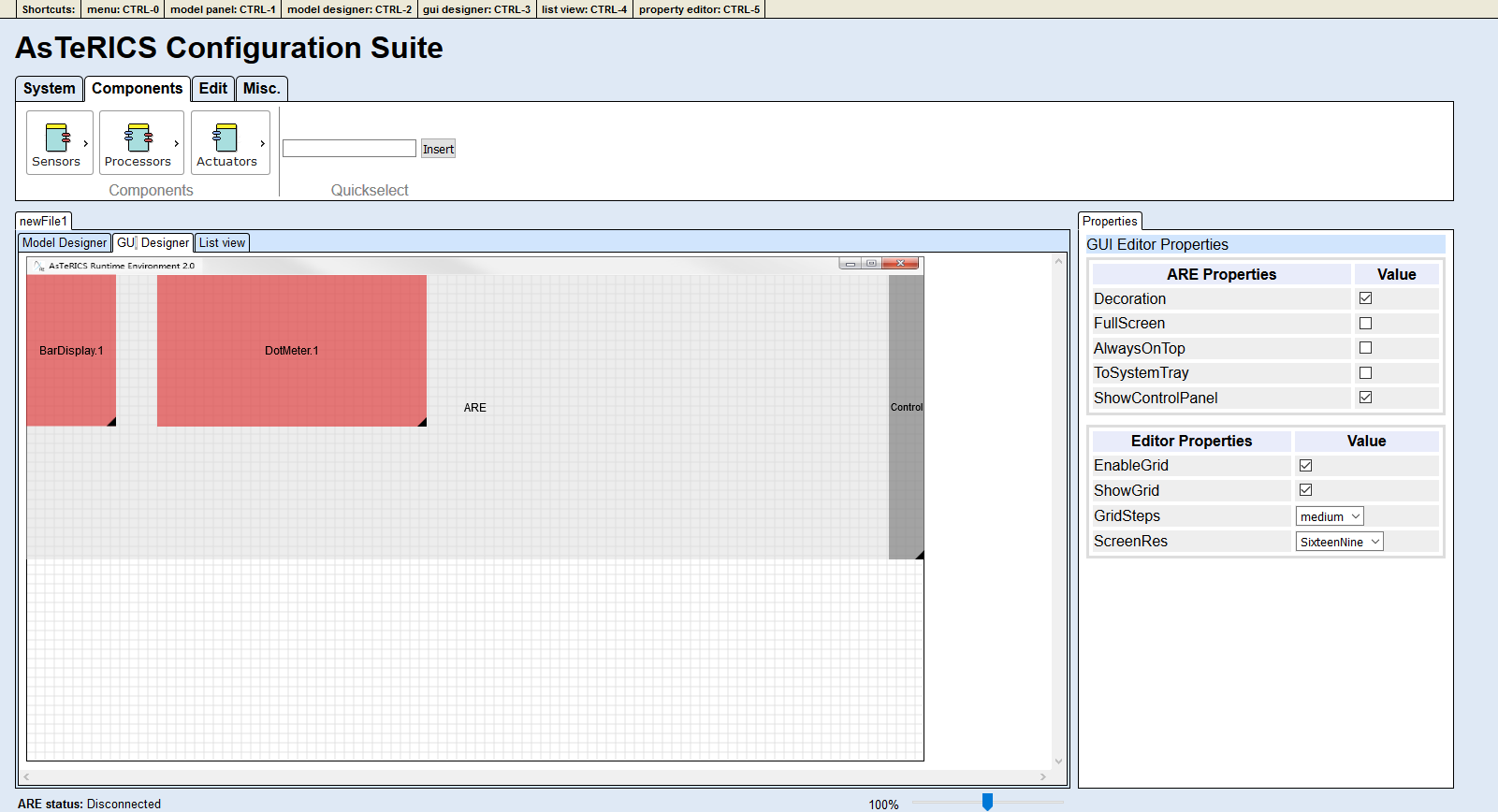

Screenshot: The GUI Designer of the ACS

The GUI Designer

Keyboard users can enter keyboard mode by hitting the Enter key when GUI Designer is selected. Then the user can navigate the elements by using the arrow keys. Shift-arrow keys moves the selected element, Alt-arrow keys resizes the selected element.
