Running

After the Start Model button has been pressed, the ACS is in the running mode. Within this mode, the drawing area is disabled (indicated by a grey background) and the buttons in the components tab and the edit tab are disabled, so elements can only be selected or moved. The following figure shows a screenshot of the ACS in running mode.

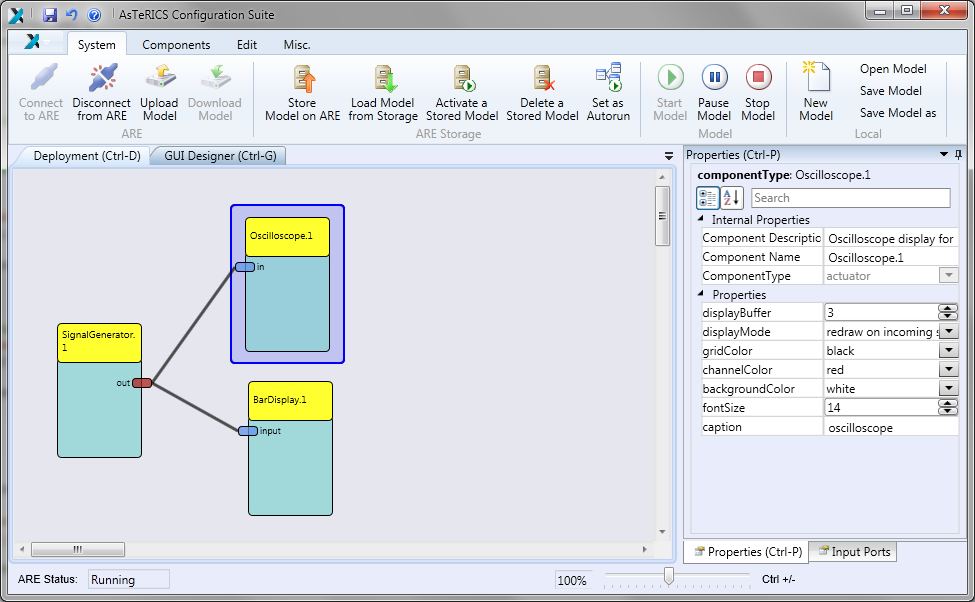

Screenshot: The ACS in the Running Modus

The ACS in the Running Modus
