# ButtonGrid

Component Type: Sensor (Subcategory: Graphical User Interface)

The Button Grid component is a simple GUI on-screen keyboard. It sends events after buttons have been pressed.

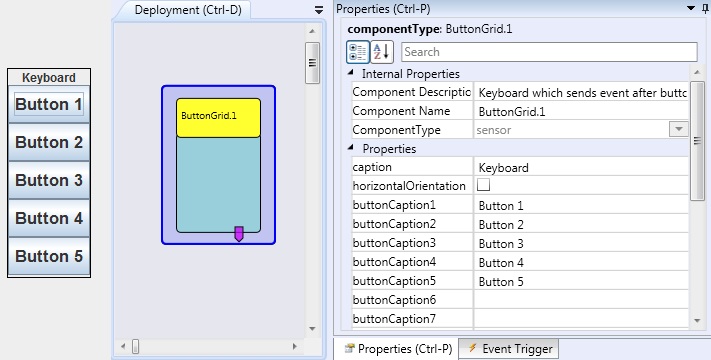

Screenshot: ButtonGrid plugin

ButtonGrid plugin

# Event Trigger Description

  • button1…button20: These events are fired as the corresponding buttons are pressed.

# Properties

  • caption [string]: The text shown on the component caption.
  • horizontalOrientation [boolean]: If selected, the keyboard will be placed horizontally, otherwise the keyboard will be placed vertically.
  • textColor [integer, combobox selection]: The color of the caption text (“default” keeps the standard setting)
  • backgroundColor [integer, combobox selection]: The color of the button background (“default” keeps the standard setting)
  • borderColor [integer, combobox selection]: The color of the button frame (“default” keeps the standard setting)
  • borderThickness [integer]: The size of the button frame
  • selectionFrameColor [integer, combobox selection]: The color of the selection frame (active button, “default” keeps the standard setting)
  • selectionFrameThickness [integer]: The size of the selection frame
  • displayGUI [boolean]: if selected, the GUI of this component will be displayed - if not, the GUI will be hidden and disabled.
  • buttonCaption1…buttonCaption20 [string]: The text shown on the buttons:1…20. If the text is empty, the button will not be displayed at all.
  • toolTip1…toolTip20 [string]: The text shown as tooltip when the mouse hovers over a corresponding button. If the text is empty, no tooltip will be displayed.
