# FS20Receiver
Component Type: Sensor (Subcategory: Home Control)

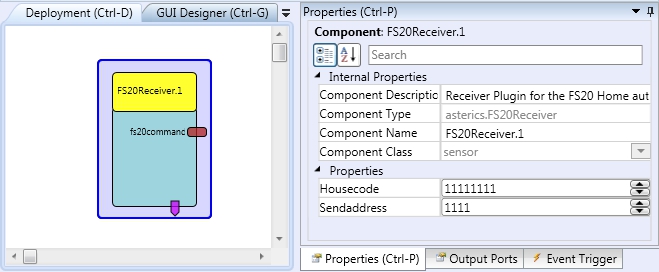

The FS20Receiver receives commands of the home automation system FS20 for ELV Electronics. Depending on the received commands, events will be fired.
# Requirements
This component requires the FS20 PCE Receiver (opens new window) connected to a USB port.
# Supported OSes
- Windows (
x86,x64) - Linux (
x86,x64,ARM- (Raspberry Pi)) - macOS X (
x86,x64)
# Notes on Linux platform
If you installed AsTeRICS as package, all necessary permission already set. If you built AsTeRICS on your own, please type following command on a terminal window:
sudo echo 'ATTRS{idProduct}=="e015", ATTRS{idVendor}=="18ef", MODE="0660", GROUP="plugdev"' > /etc/udev/rules.d/50-asterics-fs20.rules
One additional command is necessary if you work on ARM based platforms (RaspberryPi, BananaPi,…):
sudo ln -sf /lib/arm-linux-gnueabihf/libudev.so.1 /lib/arm-linux-gnueabihf/libudev.so.0
Afterwards, unplug and plug in the FS20 device and restart AsTeRICS.
# Output Port Description
- fs20command [string]: The received FS20 command will be send out of the plugin. The data has the following format: housecode_sendaddress_command, e.g. 11111111_3343_17
# Event Trigger Description
Each received command triggers an event, being mapped to this command. The following table will describe this events:
Command Mapping
| Event | Command |
|---|---|
| Off | 0 |
| Level1 | 1 |
| Level2 | 2 |
| Level3 | 3 |
| Level4 | 4 |
| Level5 | 5 |
| Level6 | 6 |
| Level7 | 7 |
| Level8 | 8 |
| Level9 | 9 |
| Level10 | 10 |
| Level11 | 11 |
| Level12 | 12 |
| Level13 | 13 |
| Level14 | 14 |
| Level15 | 15 |
| Level16 | 16 |
| OnOldLevel | 17 |
| Toggle | 18 |
| Dim Up | 19 |
| Dim Down | 20 |
| Dim Up and Down | 21 |
| Program internal timer | 22 |
| Off for timer then old brightness level | 24 |
| On for timer then off | 25 |
| On old brightness level for timer then off | 26 |
| On for timer then old brightness level | 30 |
| On for old level then previous state | 31 |
# Properties
- housecode [integer] The housecode, the system should react on. The housecode has 8 digits, each from 1 to 4. This property influences the event triggers, but not the fs20command output port.
- sendaddress [integer] The sendaddress, the system should react on. The sendaddress has 4 digits, each from 1 to 4. This property influences the event triggers, but not the fs20command output port.
