# Lipmouse

Component Type: Sensor (Subcategory:Sensor Modules)

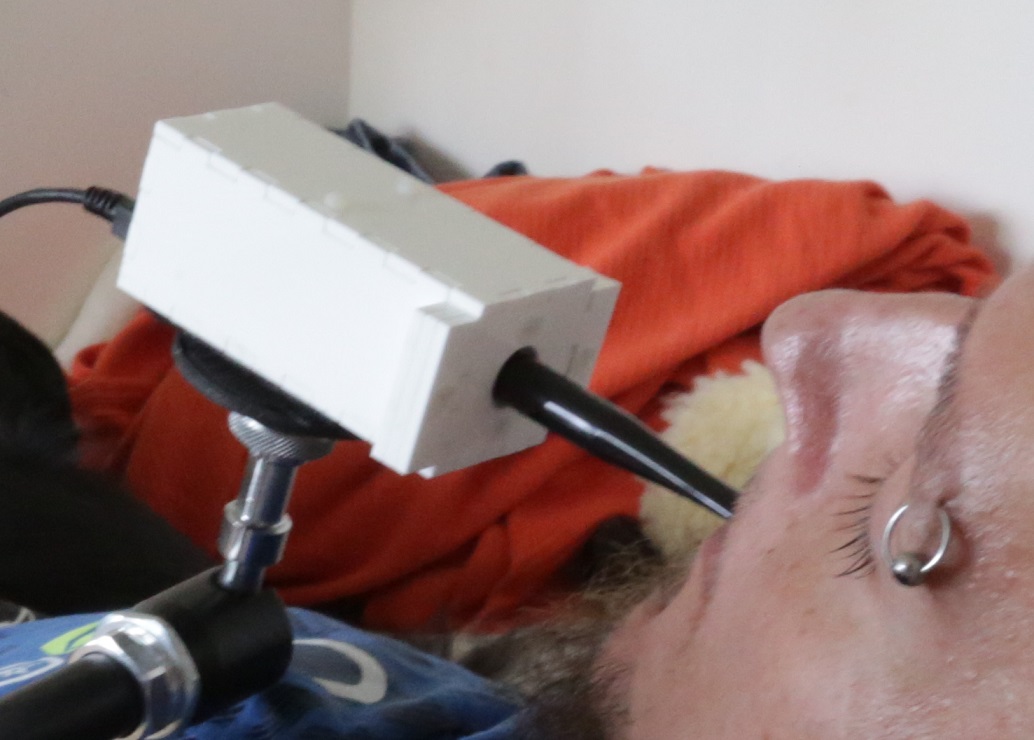

This component provides signals from the FLipmouse module, which is a universal hardware module for alternative computer control and environnmental control. The FLipMouse allows computer control via a mouthpiece (i.e. via lips or small finger movements), and can create USB HID input for computers or smart phones (mouse-, keyboard- and joystick emulation). The FlipMouse also includes an infrared receiver and transmitter so that it can record and replay infrared codes of different consumer electronic devices. A user interacts with the FLpiMouse mouthpiece: left/right, up/down and sip/puff. Alternatively, HID actions and IR functions can be controlled via AT-commands (see below). The FLipmouse can be adjusted to work with very low forces so that it can be used by persons with severly reduced motor capabilites.

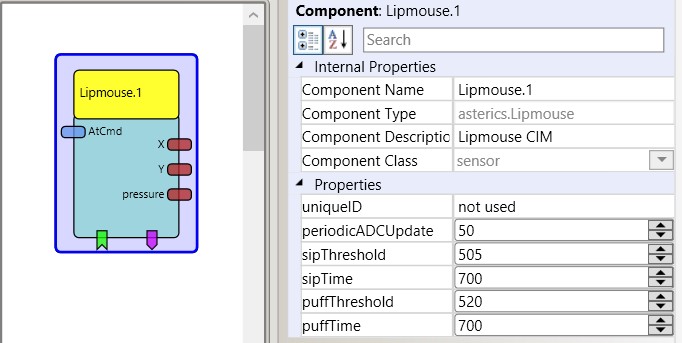

Screenshot: Lipmouse plugin

The Lipmouse sensor plugin

# Requirements

The FLipmouse module must be connected to a USB port. Firmware for the FLipmouse sensor can be found in Github repository. The free Arduino IDE + Teensyduino can be used to update the firmware of the FLipmouse module.

Lipmouse sensor application

FLipmouse application

# Input Port Description

  • AtCmd [string]: many functions of the FLipMouse can be controlled via AT commands, i.e. commands strings which start with ‘AT’ and are supported by the FLipMouse module. For a comprehensive list of supported commands see: here. The command strings sent to this input port do not need to start with ‘AT’ and do not need to end with a CR/LF character. For example: if you want to move the mouse 20 steps in x-direction, send ‘MX 20’ to the input port.

# Output Port Description

  • X [integer]: the force applied to the FLipmouse mouthpiece in x-direction
  • Y [integer]: the force applied to the FLipmouse mouthpiece in y-direction
  • pressure [integer]: the pressure value applied to the sip/puff - sensor

# Event Listener Description

  • calibration: if this event is received, the x/y force value is set to 0 (removing any drift of the sensor values)
  • setLed1: if this event is received, Led1 will be turned on
  • clearLed1: if this event is received, Led1 will be turned off
  • setLed2: if this event is received, Led2 will be turned on
  • clearLed2: if this event is received, Led2 will be turned off
  • setLed3: if this event is received, Led3 will be turned on
  • clearLed3: if this event is received, Led3 will be turned off

# Event Triggerer Description

  • sip: will be triggered when pressure decreases under the selected sip treshold and increses back before the selected sipTime has passed
  • longSip: will be triggered when pressure decreases under the selected sip treshold and increases back after the selected sipTime has passed
  • sipStart: will be triggered at the moment when pressure decreases under the selected sip treshold
  • sipEnd: will be triggered at the moment when pressure increases above the selected sip treshold
  • puff: will be triggered when pressure increases above the selected puff treshold and decreases back before the selected puffTime has passed
  • longPuff: will be triggered when pressure increases above the selected puff treshold and decreases back after the selected puffTime has passed
  • puffStart: will be triggered at the moment when pressure increases above the selected puff treshold
  • puffEnd: will be triggered at the moment when pressure decreases under the selected puff treshold
  • button1Pressed: will be triggered when button1 of the FLipmouse is pressed
  • button1Released: will be triggered when button1 of the FLipmouse is released
  • button2Pressed: will be triggered when button2 of the FLipmouse is pressed
  • button2Released: will be triggered when button2 of the FLipmouse is released
  • button3Pressed: will be triggered when button3 of the FLipmouse is pressed
  • button3Released: will be triggered when button3 of the FLipmouse is released

# Properties

  • uniqueID [integer]: a unique identifier, useful if more then one lipmouse modules are used (dynamic property).
  • periodicADCUpdate [integer]: the update rate for force and pressure values in milliseconds.
  • sipThreshold [integer]: threshold value for sip actions.
  • sipTime [integer]: threshold time for sip/longSip events.
  • puffThreshold [integer]: threshold value for puff actions.
  • puffTime [integer]: threshold time for puff/longPuff events.
Last Updated: 11/26/2019, 11:09:21 AM
