# TextfieldReader

Component Type: Sensor (Subcategory: Graphical User Interface)

Similar to the Keyboard Hook component, this component provides access to keystrokes coming from a standard keyboard or injected via software. The difference to the Keyboard Hook is that the Text Field Reader opens a GUI element with a text input filed and processes key input only from this text field. The keycodes of the pressed keys and accumulated words (multiple keys separated by ) are provided at the output ports of this component. Possible applications include triggering functions by keyboard input or remapping keys to other keycodes.

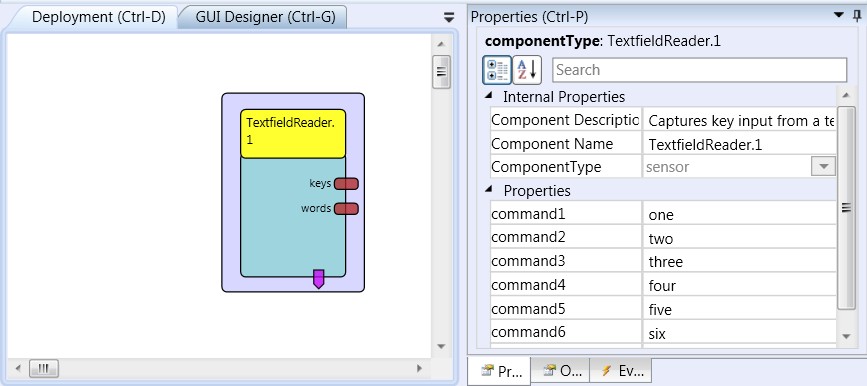

Screenshot: TextfieldReader plugin

TextfieldReader plugin

# Requirements

A keyboard which generates keystrokes or a software component which injects keystrokes into the operating system?s message queue.

# Output Port Description

  • keys [integer]: This port sends the virtual keycode of the last pressed key as an integer value.
  • words [string]: This ports accumulates keystrokes and sends them as a string as soon as a blank separator (space key) appears in the key input stream.

# Event Trigger Description

  • recognizedCommand1 - recognizedCommand7: These event ports fire an event if one of seven command strings has been detected in the current input stream of keys.

# Properties

  • command1 [string] - command7 [string]: Seven string properties to specify command strings. The component looks for these command strings in the input stream of keystrokes. If a command string matches, the corresponding event trigger port is raised. This can be useful for example to define voice commands which should trigger certain actions in other ARE plugins.
  • displayGUI [boolean]: If selected, the GUI of this component will be displayed - if not, the GUI will be hidden and disabled.
Last Updated: 11/26/2019, 11:09:21 AM
