# JoystickCapture

Component Type: Sensor (Subcategory: Standard Input Devices)

The JoystickCapture component provides data from the first detected Joystick controller which is available on the local system. Six Joystick analog positions (axis), the Point-Of-View angle and up to 20 Buttons are available as output ports and event triggers.

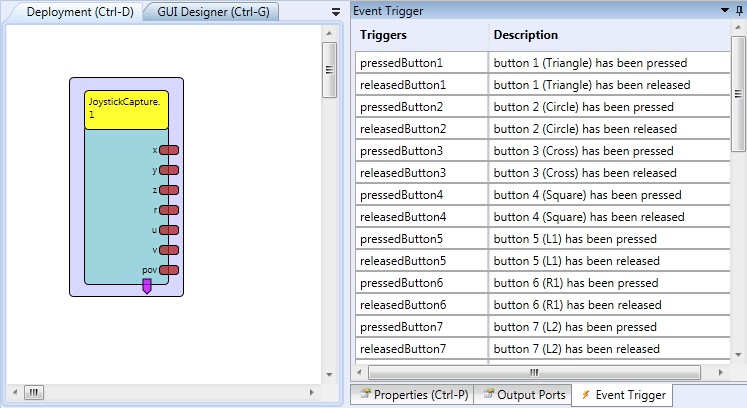

Screenshot: JoystickCapture plugin

JoystickCapture plugin

# Requirements

A joystick has to be connected and available to the operating system.

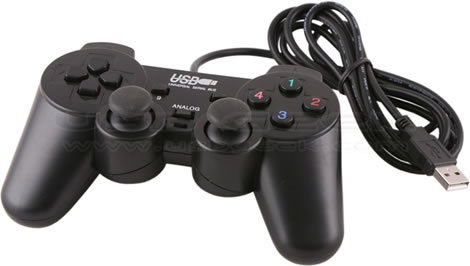

PC compatible GamePad

PC compatible GamePad

# Output Port Description

  • x [integer]: The X-Position of the Joystick.
  • y [integer]: The Y-Position of the Joystick.
  • z [integer]: The Z-Position of the Joystick.
  • r [integer]: The R-Position of the Joystick.
  • u [integer]: The U-Position of the Joystick.
  • v [integer]: The V-Position of the Joystick.
  • pov [integer]: The POV-angle of the Joystick.

# Event Trigger Description

  • pressedButton1 - pressedButton20: This event is fired if the corresponding button of the Joystick has been pressed.
  • releasedButton1 - releasedButton20: This event is fired if the corresponding button of the Joystick has been released.

# Properties

  • updatePeriod [integer]: This property value sets the update time for refreshing the joystick information (in milliseconds).
Last Updated: 11/26/2019, 11:09:21 AM
