# SignalShaper

Component Type: Sensor (Subcategory: Simulation)

The SignalShaper component can be used to generate signal composed from basic linear functions.

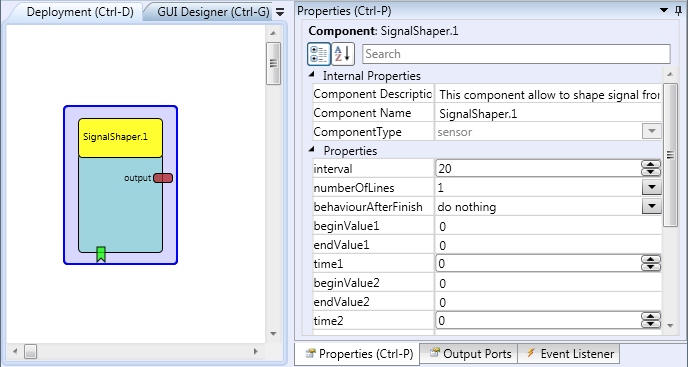

Screenshot: SignalShaper plugin

SignalShaper plugin

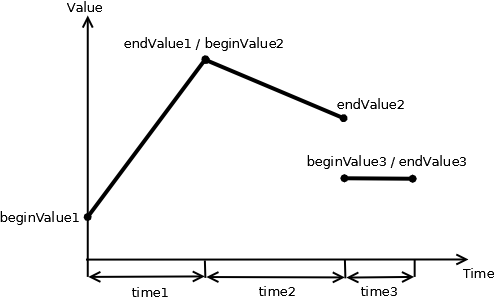

Example composed signal created from three linear signals

Example composed signal created from three linear signals

# Output Port Description

  • output [double]: The output port for the signal.

# Event Listener Description

  • start: Start the signal generation. If this event is received during signal generation, the signal generation is restarted.

# Properties

  • interval [integer]: The sampling  rate in milliseconds.

  • numberOfLines [integer]: The number of linear signals used to shape the output signal.

  • behaviourAfterFinish [integer]: Defines the component behaviour after all signal lines have been sent:

    • do nothing: stop any action.

    • repeat: Send the signal lines from beginning.

    • send the last value: Continue to send the last value of the signal.

  • beginValue1…beginValue5 [double]: The begin value of the linear signals.

  • endValue1…endValue5 [double]: The end value of the linear signals.

  • time1…time5 [integer]: The duration of the linear signals in milliseconds.
