# DigitalOut

Component Type: Actuator (Subcategory: Generic Control Output)

The DigitalOut plugin operates the output ports of the GPIO CIM. The output ports 1-2 are relais outputs where loads can be connected via a galvanic isolation barrier. The output ports 3-5 are open-collector outputs, where a pull-up resistor can be activated or deactivated using the plugin’s properties. The plugin provides event listener ports which serve the activation or deactivation of an output channel, and a command port which accepts string parameters to set, clear and toggle particular output channels.

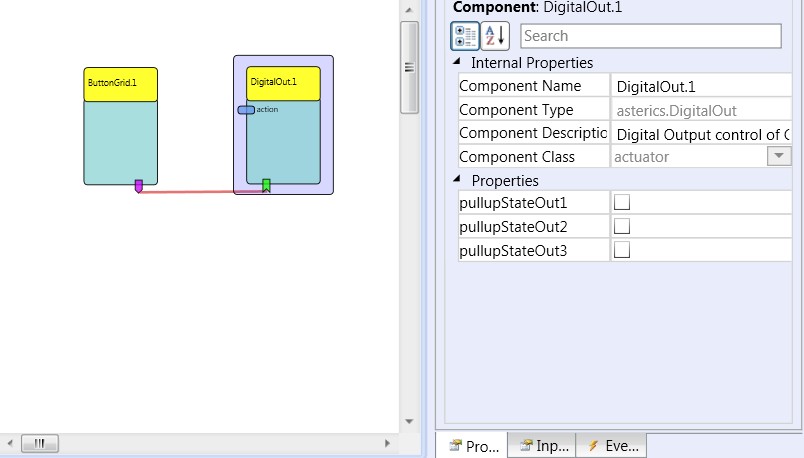

Screenshot: DigitalOut plugin

# Requirements

This component requires the GPIO CIM (CIM Id: 0x0801) to be connected to an USB port.

# Input port Description

  • action [string]: The plugin reacts to incoming action strings starting with “@GPIO:” and a command. Valid commands are “set”, “clear”, “toggle” and “press”. The command has to be followed by a comma and the port number, for example: “@GPIO:set,1” or “@GPIO:toggle,2”. The “press”-command toggles the given output port two times with a delay of 500 milliseconds. The following examples illustrate the available action strings:
    • “@DIGITALOUT:set,1”: Pin 1 of the GPIO CIM will be set
    • _"@DIGITALOUT:clear,2":_Pin 2 of the GPIO CIM will be cleared
    • “@DIGITALOUT:toggle,1”: Pin 1 of the GPIO CIM will be changed
    • “@DIGITALOUT:press,4”: Pin 4 of the GPIO CIM will be cleared and after 500ms it will be set again

# Event Listener Description

  • setOutput1 to setOutput5: an incoming event on these ports will cause the corresponding output port on the CIM to go to the high level.
  • clearOutput1 to clearOutput5: an incoming event on these ports will cause the corresponding output port on the CIM to go to the low level.
  • **toggleOutput1 to toggleOutput5:**Toggles the state of the output port.
  • **pressOutput1 to pressOutput5:**Presses the output port: Clears the state and after 500ms sets the state to high.

# Properties

  • pullupStateOut3 to pullupStateOut5 [boolean]: These properties specify if the internal pullup resistor shall be activated on the respective open collector output channels.
  • uniqueId: unique number of the CIM - if more than one CIMs of the same type are used. The module flashes a LED for identification when the ID is selected. Supports value suggestions from ARE (dynamic property)
