Dot Meter

Component Type: Actuator (Subcategory: Graphical User Interface)

The Dot Meter generates a graphical representation of a 2-dimensional signal (for example x/y-coordinates) using a colored dot.

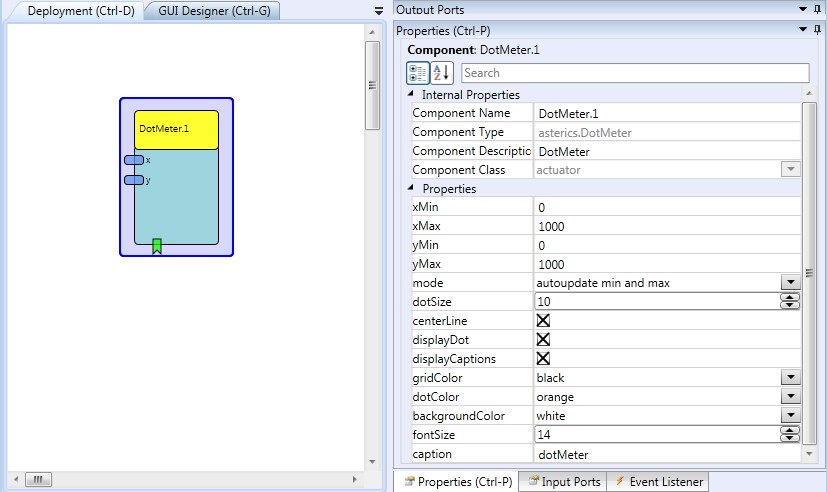

Screenshot: DotMeter plugin

DotMeter plugin

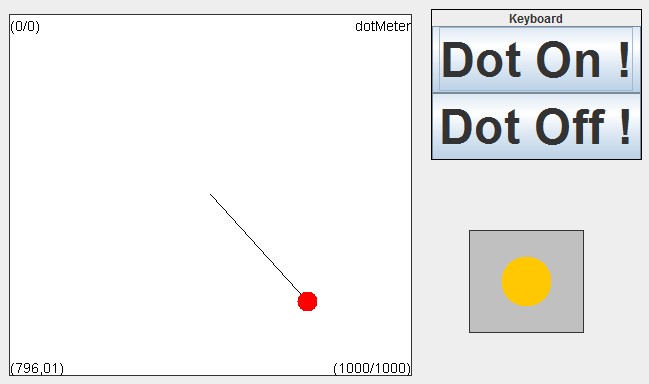

Screenshot: DotMeter example

DotMeter example

Requirements

Computer Monitor or LC-Display available for graphics output.

Input Port Description

  • x [double]: The x-input port for the signal to be displayed. This input port supports synchronization
  • y [double]: The y-input port for the signal to be displayed. This input port supports synchronization

Event Listener Description:

  • dotOn: fill the dot with color.
  • dotOff: show only outline of the dot (can be used to create a led indicator).

Properties

  • xMin [double]: The default x-minimum of the signal range at model start (this value is automatically updated as lower values come in).
  • xMax [double]: The default x-maximum of the signal range at model start (this value is automatically updated as higher values come in).
  • yMin [double]: The default y-minimum of the signal range at model start (this value is automatically updated as lower values come in).
  • yMax [double]: The default y-maximum of the signal range at model start (this value is automatically updated as higher values come in).
  • mode [integer]: Via this property the way how values which exceed the current min/max range of the bar graph component are handled: “clip to min and max” crops incoming values to the min/max range, “autoupdate min and max” scales the bar graph window and updates the min/max values to cover the incoming value.
  • dotSize [integer]: The radius of the dot.
  • centerLine [boolean]: defines if a line to the window center is shown or not.
  • displayDot [boolean]: defines if the dot is filled or not.
  • displayCaptions [boolean]: defines if the value / captions are shown or not.
  • gridColor [integer]: The colour of the graph grid and descriptions.
  • dotColor [integer]: The colour of the dot.
  • backgroundColour [integer]: The colour of the window background.
  • fontSize [integer]: The font size of the display’s caption.
  • caption [string]: The text of the display’s caption.
  • displayGUI [boolean]: if selected, the GUI of this component will be displayed - if not, the GUI will be hidden and disabled.
