# EventVisualizer

Component Type: Actuator (Subcategory: Graphical User Interface)

This plugin provides a graphical feedback for events. It can be used to monitor event activities and is mainly targeted for testing of configurations during setup time. The plugin offers a GUI (simple window with text output) where event names are displayed.

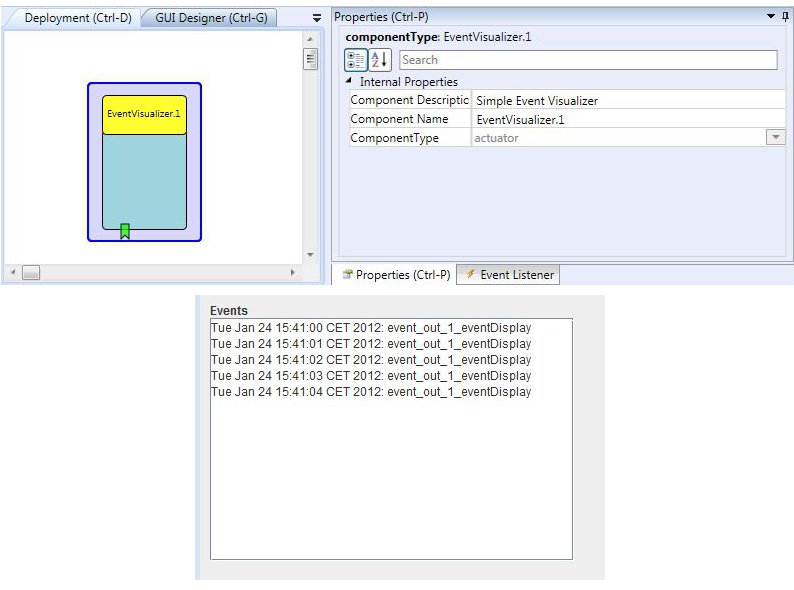

Screenshot: EventVisualizer plugin

EventVisualizer plugin

# Requirements

No special hardware or software required.

# Port Description

This plugin does not provide input or output ports.

# Event Trigger Description

  • event_in_1: incoming events will be displayed in the GUI.

# Properties

  • displayGUI [boolean]: if selected, the GUI of this component will be displayed - if not, the GUI will be hidden and disabled.
Last Updated: 11/13/2019, 5:08:53 AM
