EDF Writer

Component Type: Actuator (Subcategory: File System)

This plugin writes the incoming data into an .edf file (http://www.edfplus.info/specs/edf.html)

The data gets live recorded, so it can be viewed simulaneously in the EDF-Browser ( http://www.teuniz.net/edfbrowser/ )

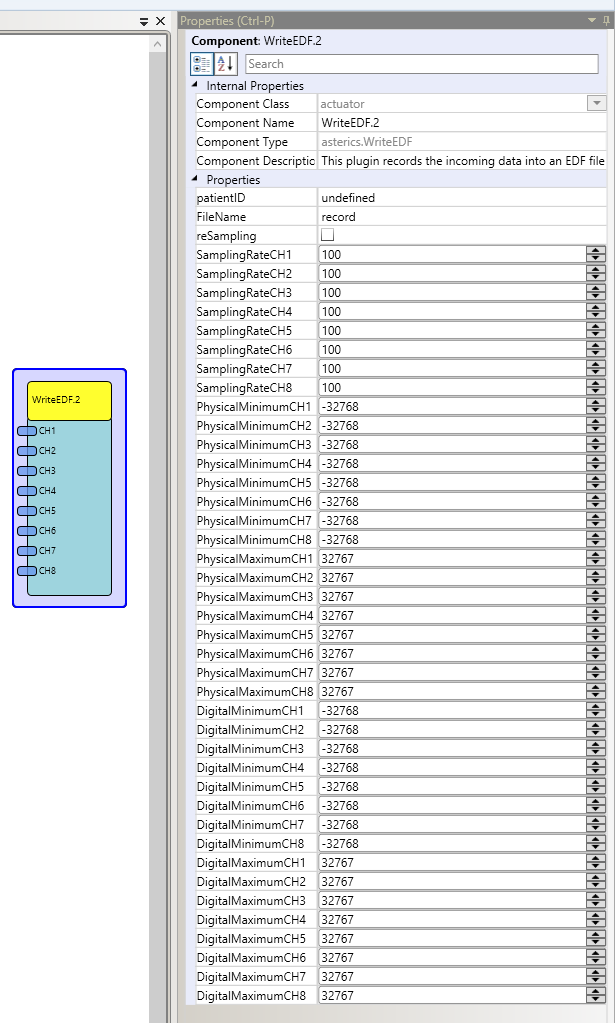

Screenshot: WriteEDF plugin

WriteEDF

Input port Description

  • CH1 - CH8[double]: these ports get the data, which will be recorded.

Properties

  • PatientID[string]: specifies the name of the subject. Maximum number of characters: 80
  • FileName[string]: specifies the name of the file (without extension ), in which the data will be recorded
  • reSampling[boolean]: If this box is checked, the incoming data will be resampled with the chosen frequency of the properties samplingRateCH1 - CH8. This could be neccessary, if the incoming data frequency is not known
  • SamplingRateCH1 - CH8[integer]: specifies the frequency of the incoming data. Values smaller than 1 will deactivate the corresponding channel
  • PhysicalMinimum CH1 - CH8 [integer]: specifies the minimum values of the incoming data
  • PhysicalMaximum CH1 - CH8 [integer]: specifies the maximum values of the incoming data
  • DigitalMinimum CH1 - CH8 [integer]: specifies the minimum values of the stored data
  • DigitalMaximum CH1 - CH8 [integer]: specifies the maximum values of the stored data
