Amplifier

Component Type: Processor (Subcategory: Basic Math)

This component takes an input and multiplies it with a gain factor set in the properties. It can be used to amplify or reduce signal values or to invert them.

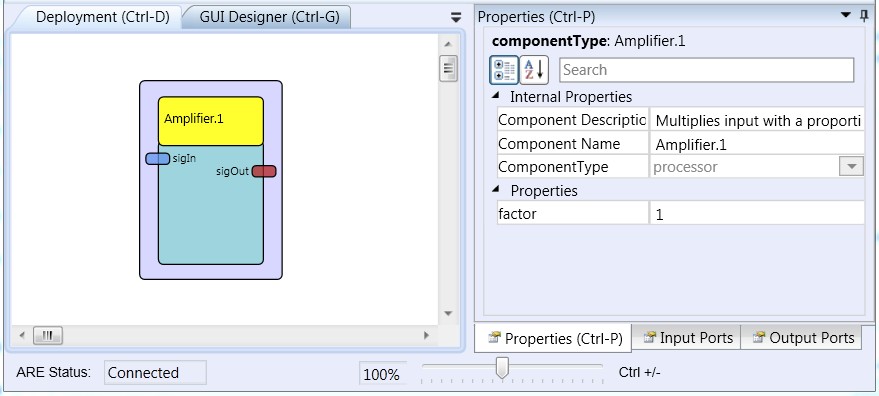

Amplifier plugin

Input Port Description

• sigIn [double]: The input value to be amplified.

Output Port Description

• sigOut [double]: The amplified output value.

Properties

• factor [double]: The gain factor that inputs are multiplied with.
