# StringPathMultiplexer

Component Type: Processor (Subcategory: Signal Pathways)

The String Path Multiplexer component forwards strings from the selected input port to the output port.

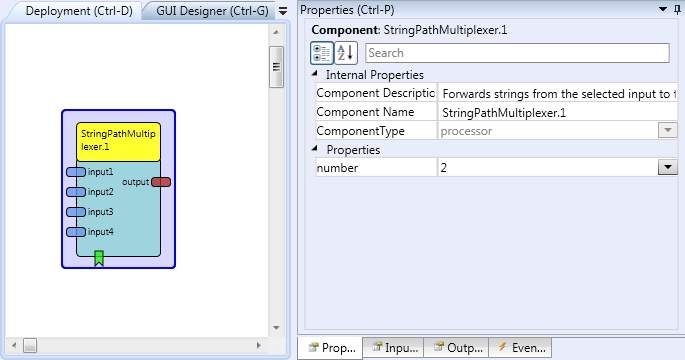

Screenshot: StringPathMultiplexer plugin

StringPathMultiplexer plugin

# Input Port Description

  • input1 to input4 [string]: The input ports for strings to be multiplexed.

# Output Port Description

  • output [string]**😗* The string output, which sends data of the selected input port.

# Event Listener Description

  • passPort1 to passPort4: The string output, which sends data of the selected input port.

  • passNextPort: selets the next input port. If the currently used port is the maximum port (defined by the number property), input port 1 will be selected.

  • passPreviousPort: selects the previous input port. If the currently used port is port 1, the maximum port (defined by the number property) will be selected.

# Properties

  • number [integer]: The maximum port number (can be 1 to 4).
