# Event Flip Flop

# Component Type: Processor (Subcategory: Event and String Processing)

This component stores the state, driven by an event. When the event-in event is received and the internal status is 1, event-out1 is fired and the internal status set to 2. When the event-in event is received and the internal status is 2, event-out2 is fired and the internal status set to 1.

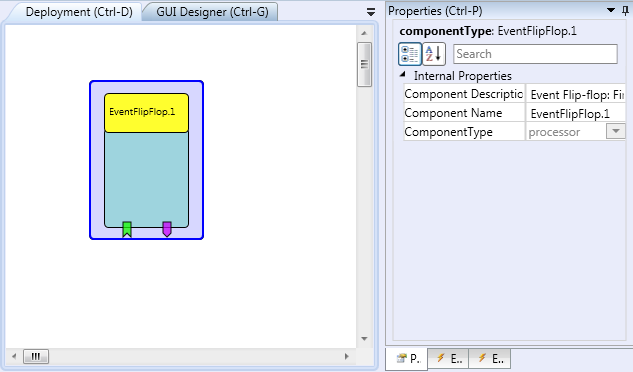

Screenshot: Event Flip Flop plugin

Event Flip Flop plugin

# Event Listener Ports

  • event-in: Event input to change the state of the flip-flop and fire an out-event.
  • selectOut1: selects state 1 (event-out1 trigger port will send the next incoming event)
  • selectOut2: selects state 2 (event-out2 trigger port will send the next incoming event)

# Event Trigger Description

  • event-out1: Event fired, if event-in received and stored state is 1.
  • event-out2: Event fired, if event-in received and stored state is 2.

# Properties

No Properties.
