EventRouter

Component Type: Processor (Subcategory: Event and String Processing)

This component allows routing up to 6 incoming events to one of 8 corresponding output (trigger) event ports.

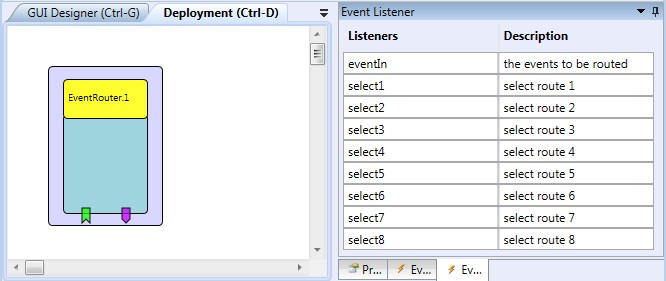

Event Router plugin

Event Listener Description

• eventIn1-6: The incoming events to be routed.
• select1-select8: selects one of the 8 corresponding event routes (trigger output ports) events entering the eventIn ports
• selectNext: selects the next event route
• selectPrevious: selects the next event route

Event Trigger Description

• eventOut1-eventOut8: 8 event trigger ports where the events entering the listener port eventIn can be routed to.
• eventOut2_1-eventOut2_8: 8 event trigger ports where the events entering the listener port eventIn2 can be routed to.
• eventOut3_1-eventOut3_8: 8 event trigger ports where the events entering the listener port eventIn3 can be routed to.
• eventOut4_1-eventOut4_8: 8 event trigger ports where the events entering the listener port eventIn4 can be routed to.
• eventOut5_1-eventOut5_8: 8 event trigger ports where the events entering the listener port eventIn5 can be routed to.
• eventOut6_1-eventOut6_8: 8 event trigger ports where the events entering the listener port eventIn6 can be routed to.

Properties

• activeRoutes (integer): number of active routes (relevant for the selectNext and selectPrevious functions and the wrapAround feature)
• wrapAround (boolean): if selected selectNext srats again at the first route when the last active route was reached, and selectPrevious continues at the last active route when triggered at the first route.
