# String Dispatcher

# Component Type: Processor (Subcategory: Event and String Processing)

This component has twenty slots for text strings. These strings can be sent to the output port via incoming events or by directly addressing a slot number using the input port.

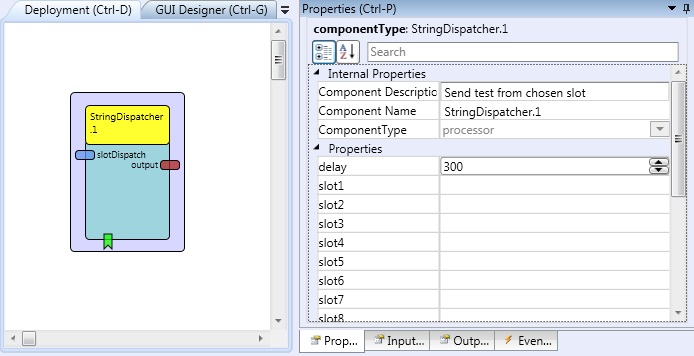

Screenshot: StringDispatcher plugin

StringDispatcher plugin

# Input Port Description

  • slotDispatch [integer]: Sends the string from the slot defined by number.

# Output Port Description

  • output [string]: String output port.

# Event Listener Description

  • dispatchSlot1…dispatchSlot20: These events cause text from the slot: 1…20 to be sent.
  • dispatchNextSlot: This event causes text from the next (not empty) slot to be sent.
  • dispatchCurrentSlot: This event causes text from the current slot to be sent.
  • dispatchPreviousSlot: This event causes text from the previous (not empty) slot to be sent.
  • resetToFirstSlot: This event resets the internal slot counter (for next/previous) to the first slot.
  • dispatchSlotSeries: This event causes text in sequence from all not empty slots to be sent, with a delay defined by the delay property.

# Properties

  • delay [integer]: The interval (in milliseconds) which will be used for sending strings sequentially from all slots.
  • slot1…slot20 [string]: 20 slots which contains the text to be sent
